Open Flare Stacks

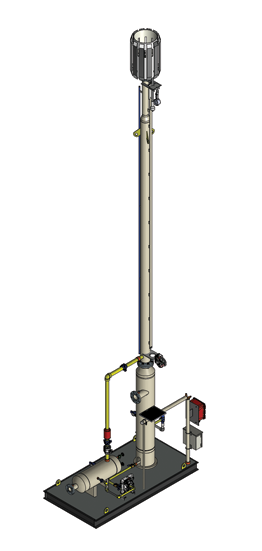

Applications: FIREBIRD-LP-FLARE-SYSTEM-big

  • High Pressure / High Flow application
  • Low Pressure / Low Flow application
  • Oil storage tanks
  • Waste gas
  • Emergency Venting

Benefits

  • Meets both federal and state requirements
  • Quick & easy installation
  • Small Footprint (8’-0” x 4’-0”)
  • Cost effective
  • Open Flame Features
  • Meets EPA 40 CFR 60.18 standards
  • Guaranteed Continuously Lit Pilot by SureFire
  • High destruction efficiency > 95%
  • Smokeless combustion
  • Horizontal Knock Out Vessel
  • Fuel Gas Scrubber for Pilot and Gas-Assist Burners
  • Pilot w/ Flame Rod and Auto Re-Ignition

Specifications

  • Flare Tip: 3’-0” of standard 304L SS pipe flanged to stack flue (riser)
  • Stack Flue: 6” standard A53 Gr.B ERW pipe, transitioning to 4” STD ERW pipe connecting to flare tip using 150# Slip-on flanges with a 1/8 inch 316 SS gasket
  • Stack Inlet: Standard 4” WPB 150# SO flange
  • Deflagration Arrestor: 2” 316SS internals.
  • Minimum purge gas requirement is 6 SCFM
  • Wind Shroud: BE standard 304L SS single pilot shroud
  • Non-Destructive Test: 100% radiography
  • Paint: SSPC-SP6 commercial sandblast, rust inhibitive primer and Sherman-Williams finish of choice
  • Max. Design OAH: 30’-0”
  • Max Design Flow LP: 225 MSCFD
  • Max. Design OAH: 35’-0”
  • Max Design Flow LP: 300 MSCFD
  • Max. Design Flow HP: 3 MMSCFD
  • Flare Support: Guy-Supported
  • Max Peak Design Wind Load: 90 mph
  • Corrosion Allowance: 1/8 inch
  • Max Ground Level Radiation (Including Solar): 500 BTU/hr/ft2
